Sport shock absorber JOM adjustable VW PASSAT 3C 05-10

Manufacturer JOM

BLUE LINE sports suspension complete with adjustable shock absorbers + sports springs, excellent quality and the right compromise between sportiness and comfort.
Our kit being sporty but not exaggerated, in addition to lowering the car with an adjustable excursion of up to 6 cm, significantly improves the stability of the car especially when cornering as the steel suspension rods are thicker, in combination with the springs more rigid.

Comfort decreases slightly but stability increases and improves the annoying roll when cornering (lateral lying of the car).

Suitable for:

VW PASSAT 3C B6 2.0T - 2.0TDI - 3.2 - GSG 4MOTION

NOT COMPATIBLE WITH ALL-TRACK VERSIONS

Maximum permissible axle load: VA 20-60 mm / HA 30-60 mm

Maximum load permitted for you: VA 1200 kg, HA 1250 kg

TUV approval.

Adjustment range from 20 to 60 mm approximately. (up to 50 TUV homologation)

Material: galvanized steel and high resistance powder coating.

VERSION FOR TORSION BAR REAR AXLE.

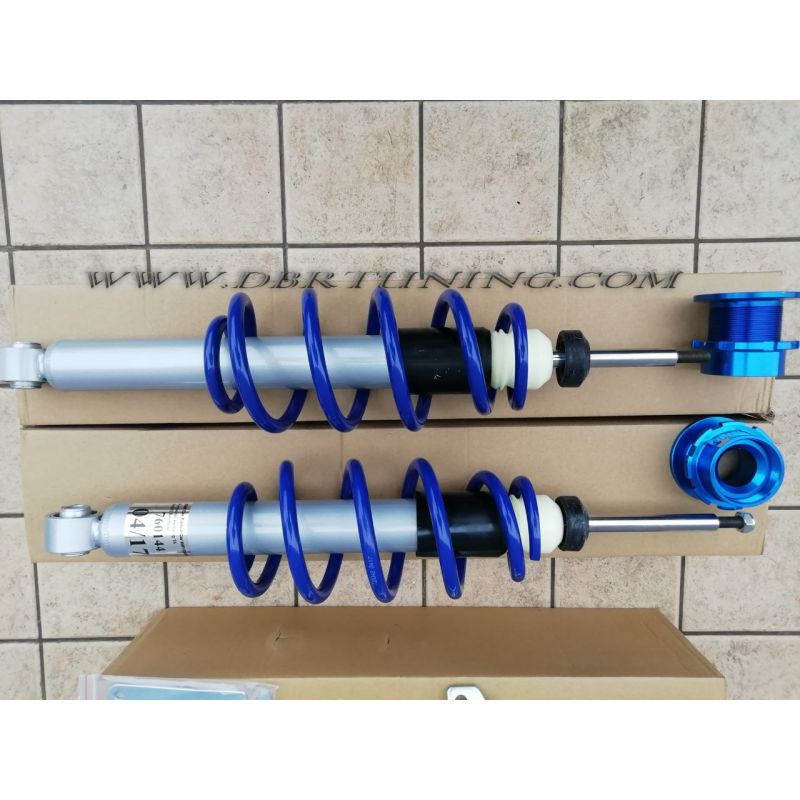

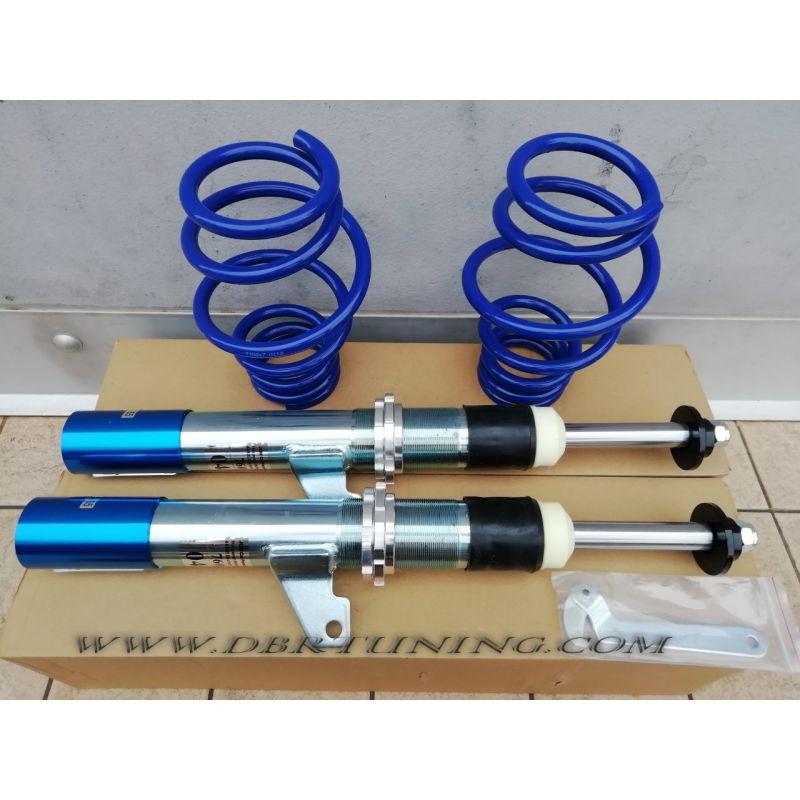

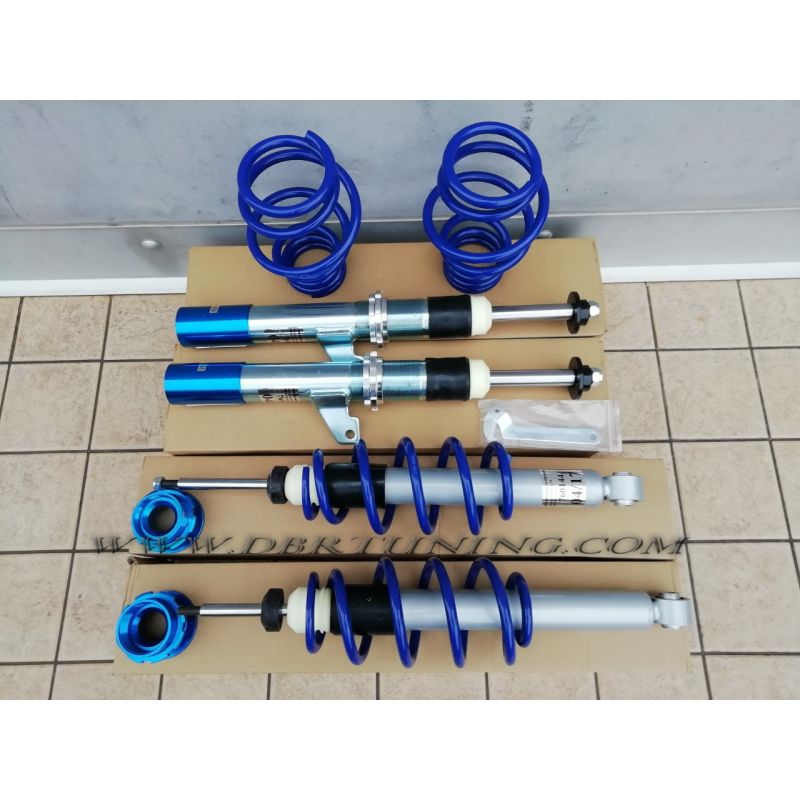

Kit as shown in the photo

2 Front shock absorbers complete with springs

2 rear shock absorbers.

2 rear axle springs

2 aluminum ring blocks for rear axle adjustment

1 adjustment key

Before ordering it is preferable that you send us photos of the booklet to be sure of compatibility.

DOWLOAD BELOW FOR TUV CERTIFICATE

CERTIFICATE 741168
