JOM Universal Adjustable Shock Absorber Linkage Kit

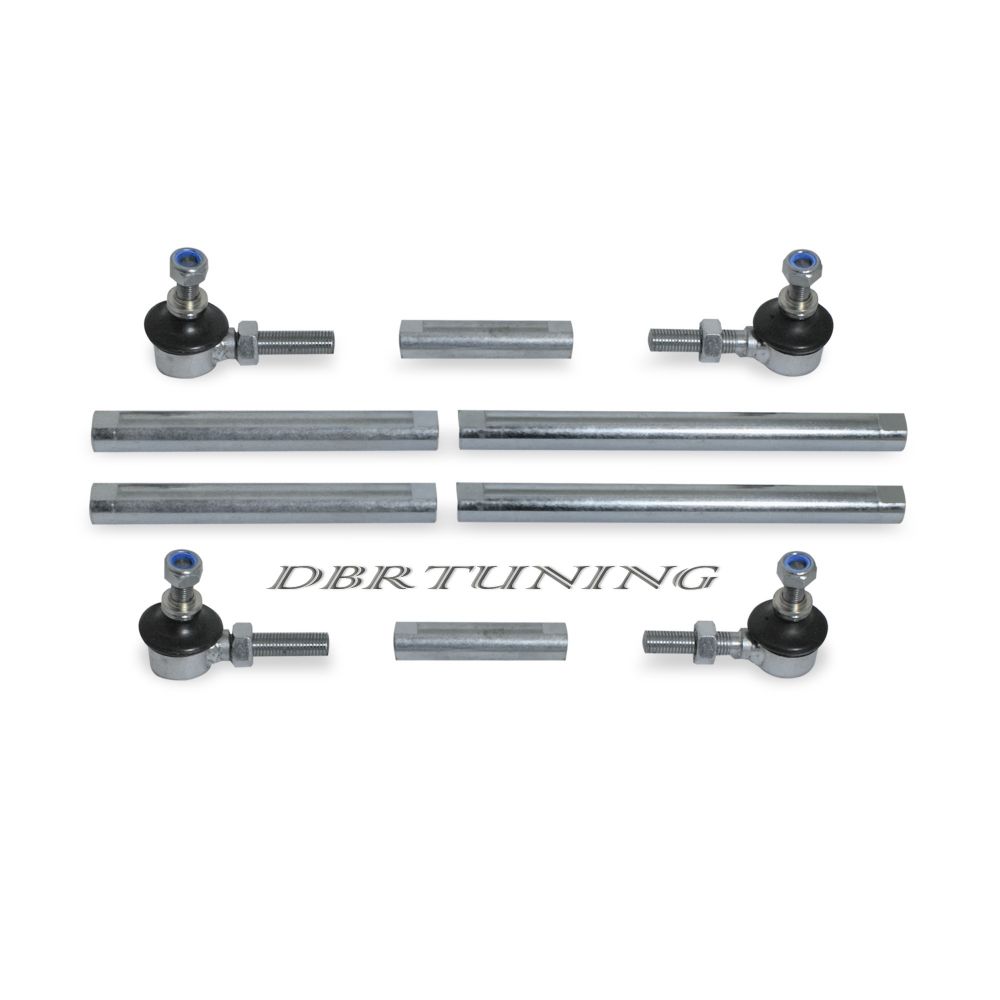

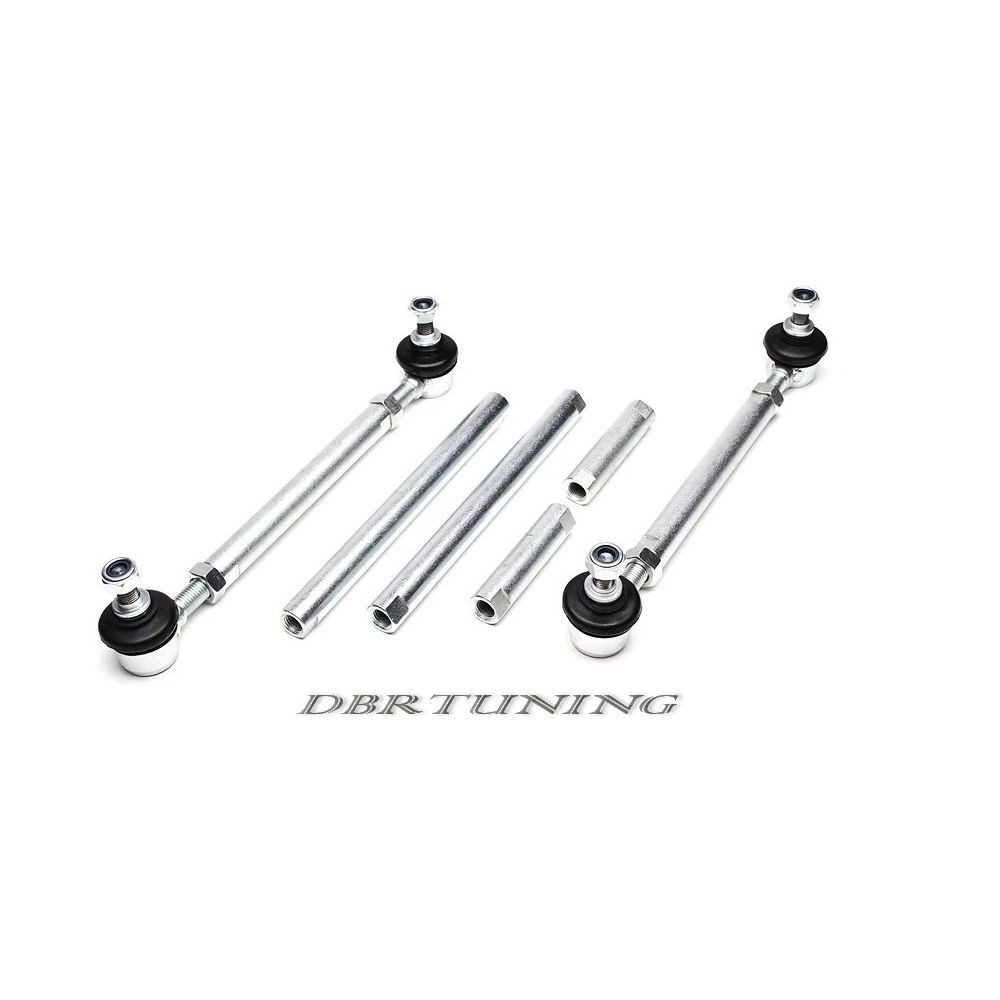

The JOM universal adjustable sway bar end link kit is a set of stabilizer bar links designed specifically for lowered vehicles (such as coilover suspension systems). The kit is used to modify the length of the anti-roll bar connection to prevent it from rubbing against the drive shafts or other mechanical components after lowering the car.

Key Features:

Modular Configuration (3-in-1): The kit consists of interchangeable inserts of different lengths, allowing the end links to be assembled across three measurement ranges (center-to-center of the ball joint):

- Short: 150 mm – 200 mm
- Medium: 220 mm – 265 mm (or 270 mm)
- Long: 270 mm – 320 mm
Dual Thread Compatibility: The package typically includes interchangeable studs with both M10 and M12 threads (1.5 pitch), making it compatible with most suspension systems on the market.
Materials and Durability: Made of corrosion-resistant metal with oil-resistant rubber boots and self-locking nuts (Nyloc) to ensure a secure tighten and greater strength compared to OEM components.
Certification: The component is certified according to German TÜV standards.

When Is Installation Required?

When a vehicle is lowered by more than 30-40 mm using a lowering spring kit or coilovers (e.g., JOM Blueline), the factory sway bar shifts and risks striking the axles while driving or cornering. JOM adjustable end links allow you to restore the correct working geometry of the anti-roll bar, eliminating metallic noises and contact.

Compatible with:

Alfa Romeo Mito
Audi A1/A3 8P/TT
BMW E81/E82/E87/E88 / E46/E91/E93 /.
Citroen C2/C3/DS3
Fiat 124 + Abarth / 500 + Abarth / 595 + Abarth / 695 Abarth/Grande Punto + EVO Abarth/Punto
Ford Fiesta JA8/JR8/C-Max/focus DA3 + DY3 ST/focus ST/KA
Hyundai I30, Coupe + CW
KIA CEED/Pro CEED
Mazda 2/3/MX5
Mini one / Cooper R50 R52 R53 R59
Opel Adam/Astra G + H + J/Cascada/Corsa C + D + E/Tigra twin top/Zafira A + B
Peugeot 207/208
Renault Megane M
SEAT Altea/Ibiza 6 L, 6J/Leon 1 M + 1 p + 5F/Toledo 1 M + 5 p
Skoda Fabia/Octavia
Suzuki Swift SG / MZ + NZ
VW Jetta 1 K, 2 K de la Beetle16/Bora/Caddy / EOS / Golf 4 + 5 + 6 + 7 + 16 / new beetle/Passat 3C + 3CC/Polo 9N + 6R/Scirocco 13 / Touran/UP
Volvo C30/S40/V40/V50
